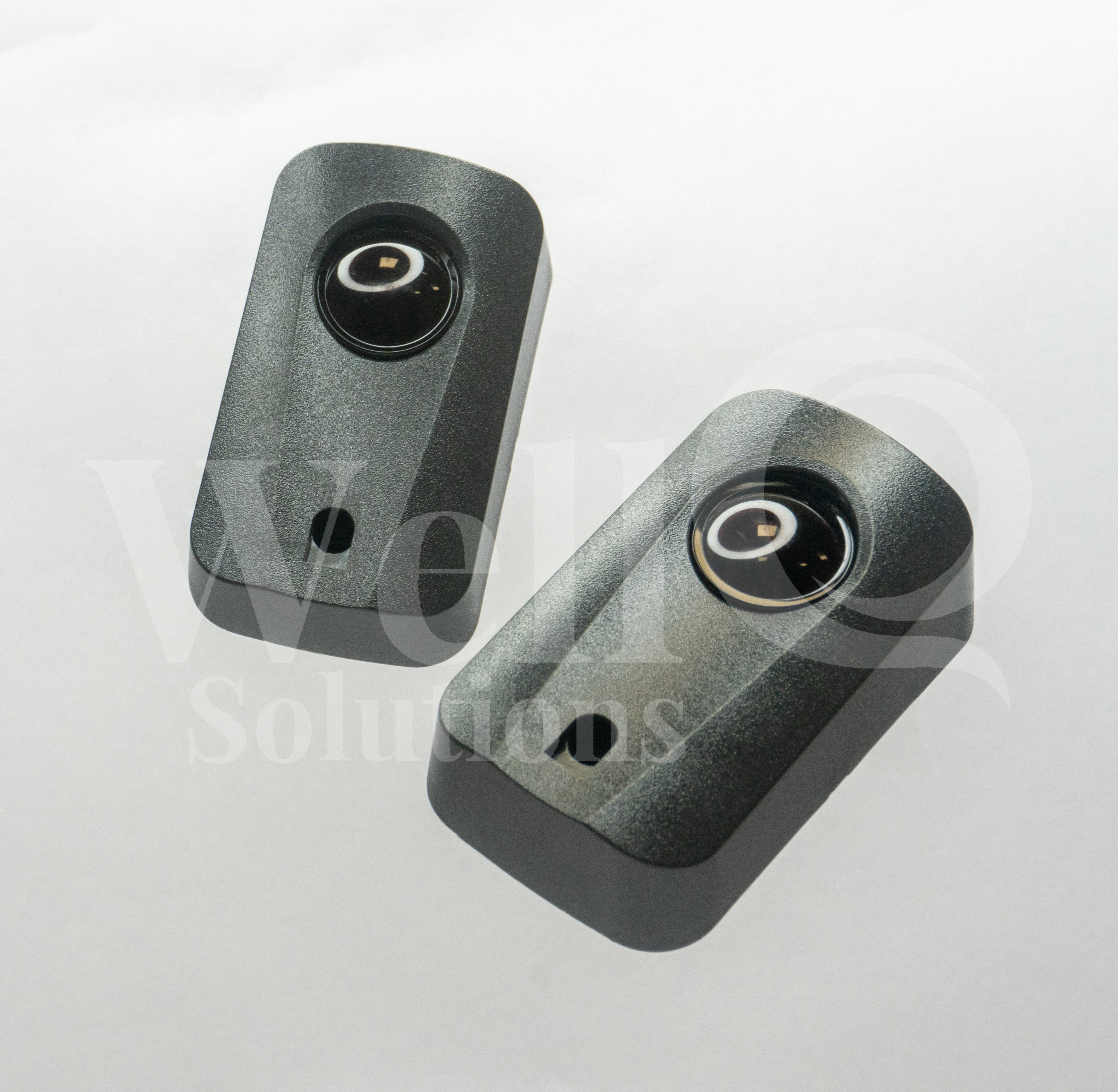

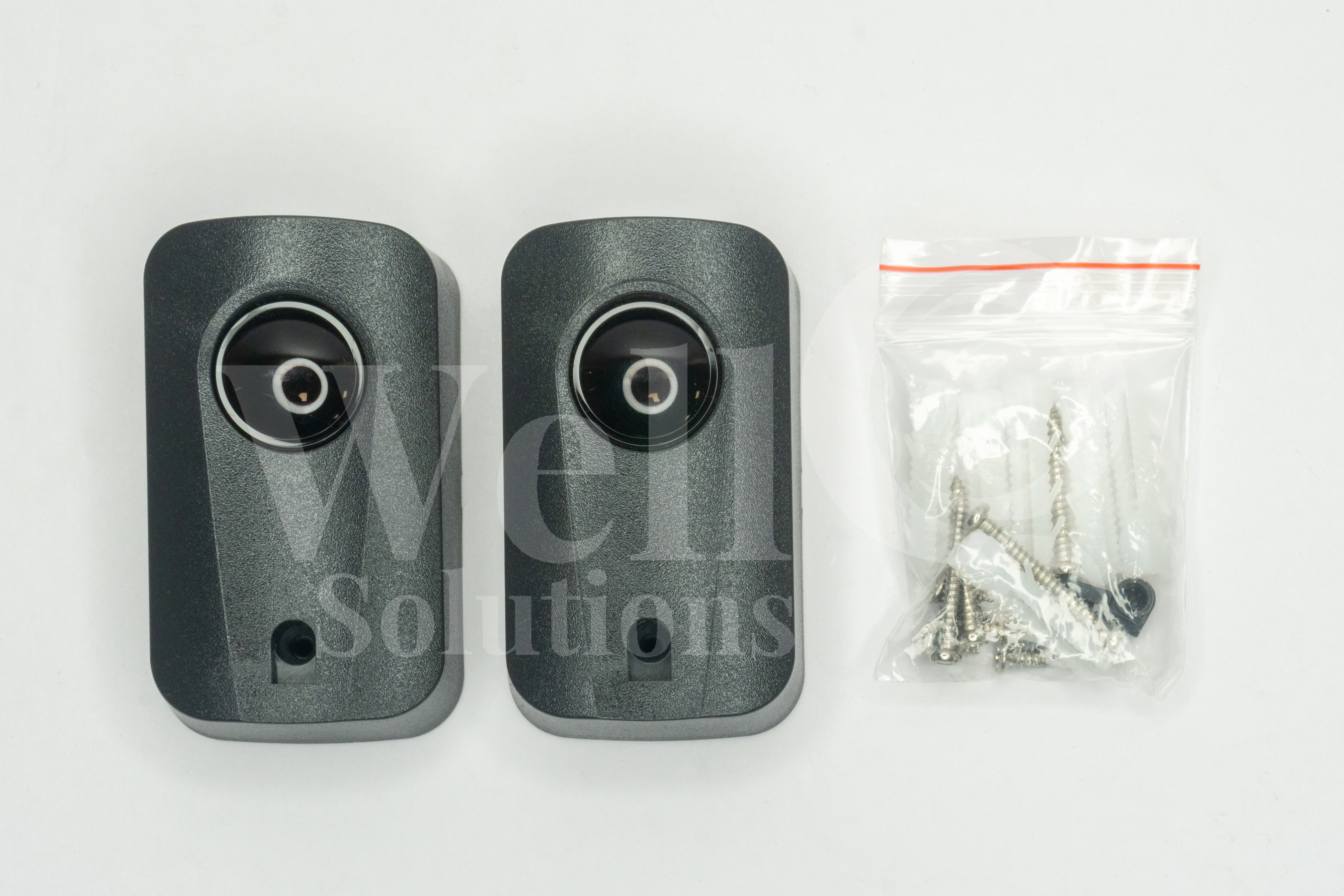

Photocell
WellQ Solutions is proud to present our high-quality industrial photocell sensor. Designed to withstand challenging environments, this sensor offers superior performance with its durable ABS chassis, IP65 protection, and easy integration with various control systems.
Description:
- Easy Installation and Mounting
- Durable ABS Chassis
- Compact and Lightweight
- Industrial-Grade Build
- High Protection Grade (IP65)
- Easy System Integration
- Certified Compliance
Specifications:
| Specification | Details |
|---|---|
| Type | Optical Sensor (Photocell) |
| Operating Voltage | 5V - 24V DC |
| Detection Range | Up to 6 meters (depends on light conditions) |
| Response Time | < 1ms |
| Output Type | Digital (NPN/PNP) or Analog |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 10-95% non-condensing |
| Protection Grade | IP65 (Water and Dust Resistant) |
| Housing Material | ABS Chassis |
| Weight | Approx. 110g |
| Power Consumption | Low Power Consumption |
| Communication Interface | RS-232 / RS-485 (Optional) |
| Application Areas | Industrial Automation, Security Systems, Smart Lighting, and Traffic Control |
